Semi rigid pure aluminum flexible duct forming machine

  • >=1 Sets
    $8,000.00
Model Number:
PAD-300
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Customization:
machine (Min. Order: 1 Sets)
Samples:
$1,000.00 /Set | 1 Set (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
None
Showroom Location:
None
Video outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
New Product 2020
Warranty of core components:
1 Year
Core Components:
Motor
Certification:
CE ISO
Brand Name:
BOBO
Applicable Industries:
Manufacturing Plant
Weight:
250kg
Place of Origin:
Jiangsu, China
Power:
0.75kW
Dimension(L*W*H):
1200mm x 550mm x 1200mm
Warranty:
1 Year, 1 Year
After-sales Service Provided:
Field installation, commissioning and training, Video technical support, Online support, Free spare parts, Field maintenance and repair service
Production Capacity:
1-5m/min
Key Selling Points:
Automatic
Product name:
pure aluminum flexible duct
Pure aluminum foil:
0.05-0.15 (code 8011, hardness H22)
Usage:
Construction Pipe
Diameter range:
60mm~300mm
Length of aluminum tube:
100-8000mm
Main motor power:
0.75kW
Duct concentrating device:
3000mm x 480mm x 1500mm
PLC control system:
from Japan
Voltage:
380V/220V
Product Certification certification
CE Certified.
Valid from 2016-10-17 until 2049-12-31
Supply Ability
Supply Ability:
20 Set/Sets per Month Single layer pure aluminum flexible duct forming machine
Packaging & Delivery
Packaging Details
Single layer pure aluminum flexible duct forming machine will be delivered in the wooden case
Port
aluminum flexible duct forming machine is from Shanghai Port
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Video Description
Product Description

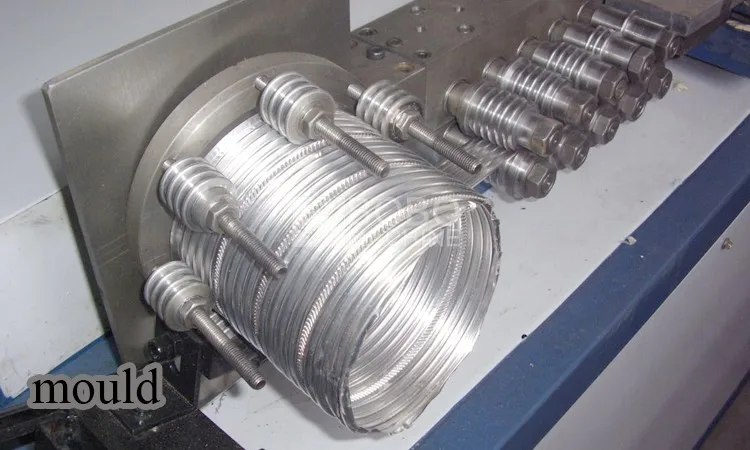

    This machine is specially for producing aluminum flexible ducts with pure aluminum foil or stainless steel without steel wire reinforcement for various purposes. Our advantage is our omnipotent mould which will save investment cost.

Product Name
Single layer pure aluminum flexible duct forming machine
Material
Aluminum
Pure aluminum foil
0.05-0.15 (code 8011, hardness H22)
Diameter range
60mm~300mm
Weight
About 250kg
Brand
BOBO
Dimension
1200mm x 550mm x 1200mm
Working speed
1-5m/min

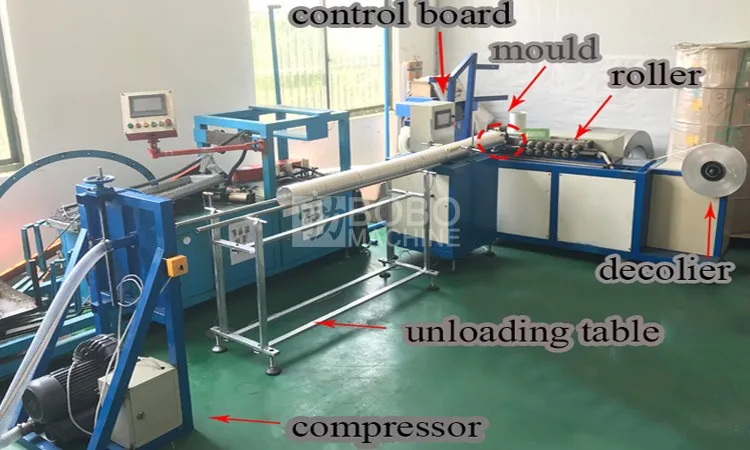

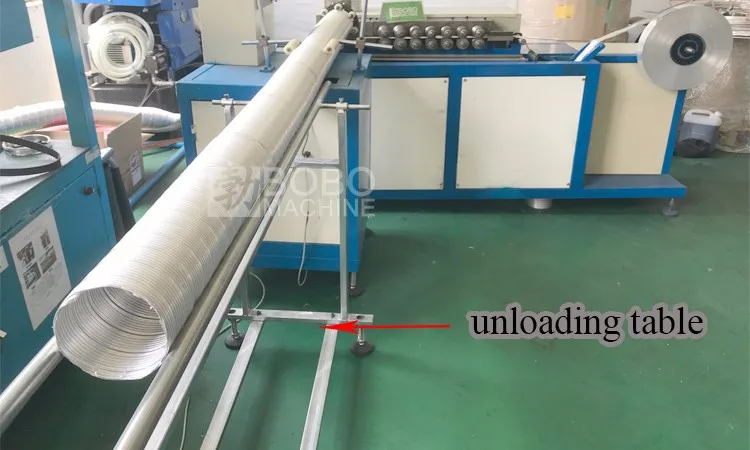

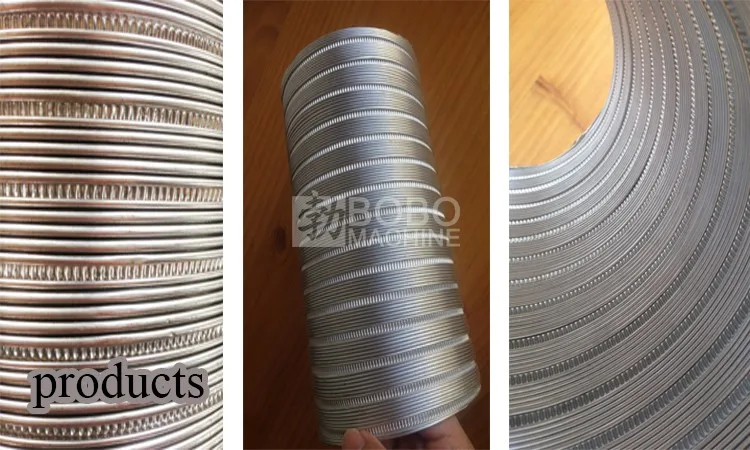

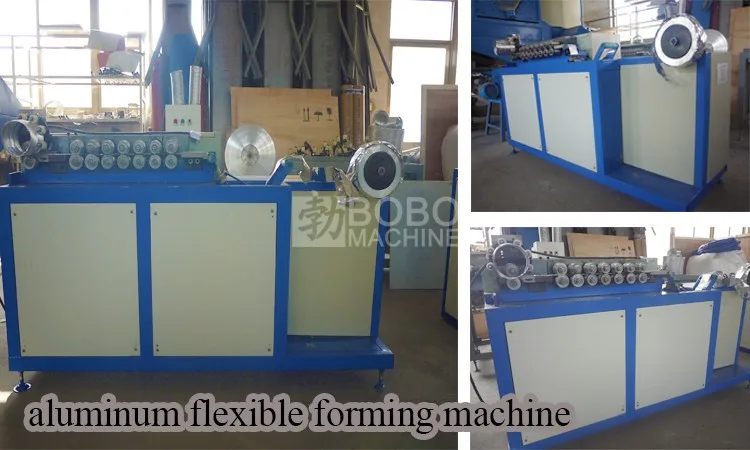

Products Show
Packing & Delivery
Our Certifications
Customer Photo
FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
