HVAC spiral aluminum foil wire round flexible duct making machine for cook hooder

  • 1 - 3 Sets
    $15,000.00
  • >=4 Sets
    $8,000.00
Max Pipe Diameter:
600mm
Model Number:
AFD-600
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 year
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Place of Origin:
Jiangsu, China
Brand Name:
BOBO
Production Capacity:
1-10m/min
Dimension(L*W*H):
2200 x 820 x 1550mm
Power(W):
2.4kW
Weight:
500kg
Certification:
CE ISO
Name:
spiral aluminum foil wire round flexible duct making machine
Pipe shape:
Circle Pipe
Layers:
single or double layers
Raw material:
Aluminum h22 code 8011
Product name:
Pure aluminum foil
Usage:
Ventilation air duct
Diameter range:
80mm~600mm
Temperature:
40~120 centigrade
Length of aluminum tube:
1-10m
Pitch between corrugations:
20mm
Condition:
New
Pipe Material:
Aluminum
Application:
Energy Supply Pipe
Type:
pipe forming machine
Voltage:
380V/220V
Supply Ability
Supply Ability:
20 Set/Sets per Month aluminum foil wire round flexible duct machine
Packaging & Delivery
Packaging Details
spiral aluminum foil wire round flexible duct making machine will be delivered in the wooden case.
Port
aluminum foil wire round flexible duct machine will be from Shanghai Port
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Video Description
Product Description

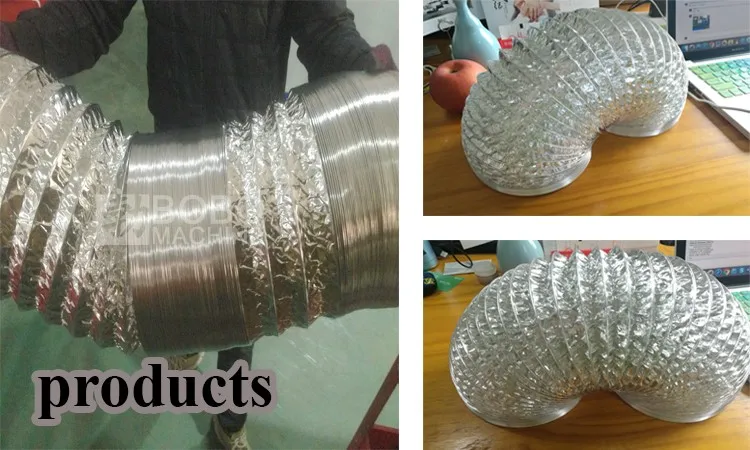

    This machine is specially for producing aluminum flexible ducts with aluminum foil or metal PET film with steel wire reinforced for ventilation purpose.

Product Name
 HVAC spiral aluminum foil wire round flexible duct making machine for cook hooder
Diameter range
80mm~600mm
Pitch
20mm
Main motor power
1.5kW
Electric heating power
2.4kW
Weight
500kg
Brand
BOBO
Dimension
2200 x 820 x 1550mm
Products Show
Our Company
Packing & Delivery
Our Certifications
Customer Photo
FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
